HeRO duet Cable types

HeRO duet Cable types2018-02-01T15:55:29+00:00

HeRO duet supports several different types of connections to the physiological monitors. In all cases, the HeRO duet cable plugs into the monitor using a port labelled as “ECG Analog Out” or “Defib/Sync.” Within a single make of monitor, this port can vary. Please make sure that the appropriate cable is used. On the duet end of the cable, all of the duet cables terminate in a RCA style plug. This then plugs into a RCA-BNC adapter that must be left on the duet.

Duet cables available

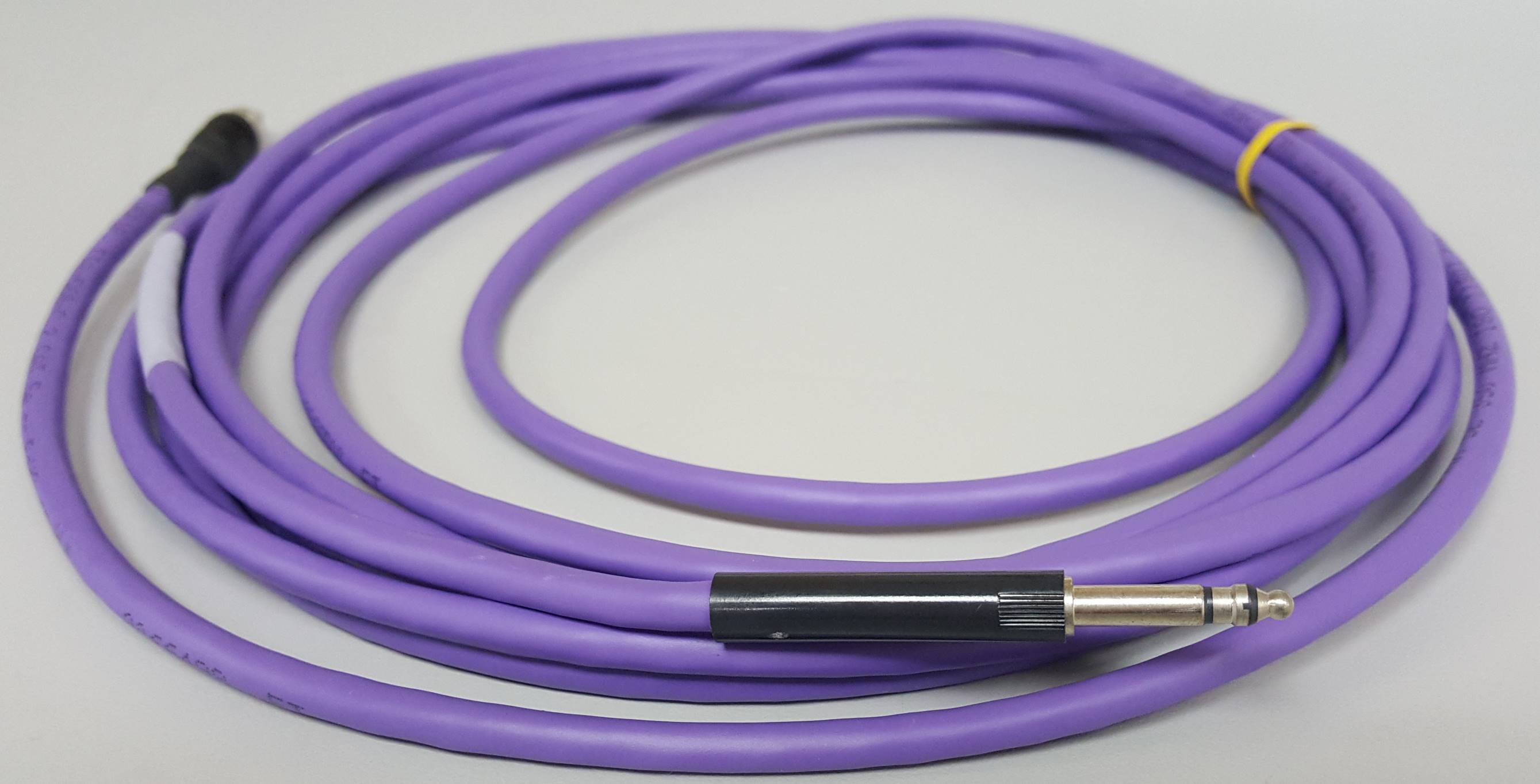

SpaceLabs

Spacelabs cable

New style GE

GE new style PDM cable

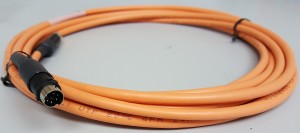

Last generation style GE (still common).

GE MiniDin cable

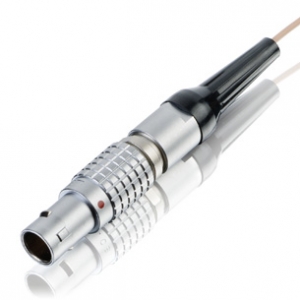

GE LEMO (older)

GE LEMO calbe

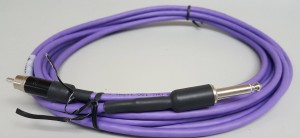

HP/Agilent/Philips

HP/Agilent/Philips cable

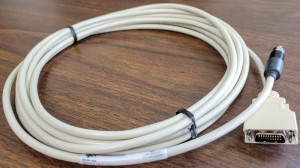

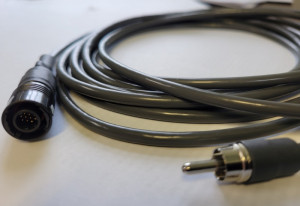

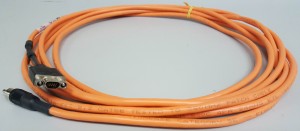

MindRay

Mindray cable

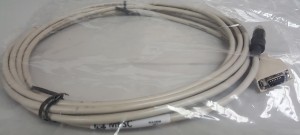

Draeger

Draeger cable

The above is not a comprehensive listing.  For other cables, please contact us.

On the HeRO AD2, the Duet cables plug into a breakaway connection

RCA-BNC
